BODYGUARD

BODYGUARD

Secure your cabin with the Bodyguard enclosure. The enclosure is designed to secure the Bodyguard to the airframe while not compromising weight or maneuverability. The med-mount disk allows the enclosure to be installed in any certified med-mount base inside the cabin.

For taxi, take off, and landing

Special Features

  • Lightweight machined aluminium construction.
  • Designed to allow access to all controls, ports, and accessories.
  • Durable construction for the air ambulance environment.
  • Quick release pin removal of Bodyguard from enclosure.
  • Indexable med-mount disk allows 360° rotation of enclosure for easy viewing of medical equipment.

Mounting Configurations Offered

HMC-BGD-1 UNIVERSAL NO DISK MOUNT
HMC-BGD-C1 BACK MOUNT
HMC-BGD-T1 TOP MOUNT
HMC-BGD-TB1 TOP & BOTTOM MOUNT SAMPLE INSTALL
HMC-BGD2P-C1 DUAL BAY BACK MOUNT SAMPLE INSTALL
HMC-BGD2P-T1 DUAL BAY TOP MOUNT SAMPLE INSTALL
HMC-BGD2P-TB1 DUAL BAY TOP & BOTTOM MOUNT SAMPLE INSTALL
HMC-BGD2PV-C1 DUAL BAY VERTICAL BACK MOUNT SAMPLE INSTALL
HMC-BGD2PV-CP1 DUAL BAY VERTICAL POLE MOUNT SAMPLE INSTALL
HMC-BGD2PV-T1 DUAL BAY VERTICAL TOP MOUNT SAMPLE INSTALL
HMC-BGD3P-C1 TRIPLE BAY BACK MOUNT SAMPLE INSTALL
HMC-BGD3P-T1 TRIPLE BAY TOP MOUNT SAMPLE INSTALL
HMC-BGD3P-TB1 TRIPLE BAY TOP & BOTTOM MOUNT

Other mounting options available upon request.

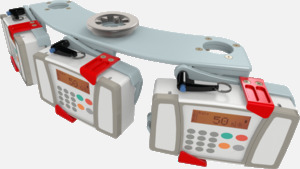

Hillaero BODYGUARD FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS ISO1 Hillaero BODYGUARD FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft ISO1
Hillaero BODYGUARD FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS FRONT Hillaero BODYGUARD FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft FRONT

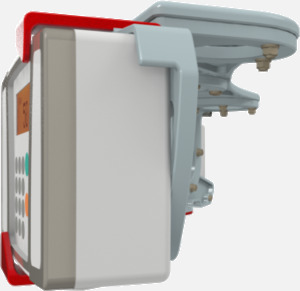

Hillaero BODYGUARD FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS SIDE Hillaero BODYGUARD FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft SIDE

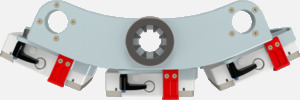

Hillaero BODYGUARD FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS TOP Hillaero BODYGUARD FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft TOP
available configurations for BODYGUARD

How To Use Our Product

The Hillaero Adapter plate can be used with most seat track configurations. The plunger secures the plate to the seat track and can be retracted by twisting the knob. In seconds the adapter plate can be removed from the seat track and installed in a new location. The Enclosure is secured to the adapter plate with the med-mount base and disk. The disk can rotate in the base allowing the enclosure to pivot on the adapter plate
