BRONCHOTRON

BRONCHOTRON

Secure your cabin with the Bronchotron enclosure. The enclosure is designed to secure the Bronchotron to the airframe while not compromising weight or maneuverability. The med-mount disk allows the enclosure to be installed in any certified med-mount base inside the cabin.

For taxi, take off, and landing

Special Features

  • Lightweight machined aluminium construction.
  • Designed to allow access to all controls, ports, and accessories.
  • Durable construction for the air ambulance environment.
  • Quick release pin removal of Bronchotron from enclosure.
  • Indexable med-mount disk allows 360° rotation of enclosure for easy viewing of medical equipment.

Mounting Configurations Offered

HMC-BRTRN-TP1 TOP & POLE MOUNT SAMPLE INSTALL

Other mounting options available upon request.

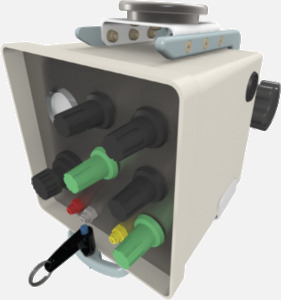

Hillaero BRONCHOTRON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS ISO1 Hillaero BRONCHOTRON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft ISO1

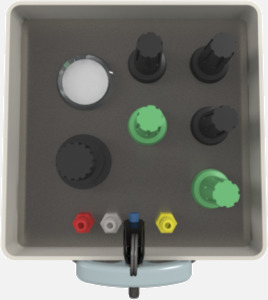

Hillaero BRONCHOTRON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS FRONT Hillaero BRONCHOTRON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft FRONT
Hillaero BRONCHOTRON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS SIDE Hillaero BRONCHOTRON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft SIDE

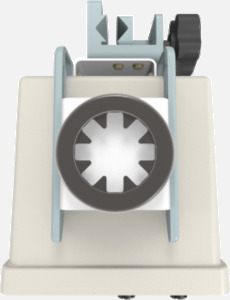

Hillaero BRONCHOTRON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS TOP Hillaero BRONCHOTRON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft TOP

Overhead Sliding Adapter

Our overhead rail system lets you move your medical equipment where you need it, when you need it. With the twist of the red knob the mount can be moved directly above the patient or to the back of the aircraft. Each adapter features our MED-Mount base and will accept any of our enclosures. We have kits available for the Pilatus PC-12 and Cessna Citation, but other aircraft could be outfitted.

How To Use Our Product

The Hillaero Adapter plate can be used with most seat track configurations. The plunger secures the plate to the seat track and can be retracted by twisting the knob. In seconds the adapter plate can be removed from the seat track and installed in a new location. The Enclosure is secured to the adapter plate with the med-mount base and disk. The disk can rotate in the base allowing the enclosure to pivot on the adapter plate
