HAMILTON T1

HAMILTON T1

Secure your cabin with the Hamilton T1 enclosure. The enclosure is designed to secure the Hamilton T1 to the airframe while not compromising weight or maneuverability. The med-mount disk allows the enclosure to be installed in any certified med-mount base inside the cabin.

For taxi, take off, and landing

  • See the Hamilton T1 installed onto a Lear 70 track kit.

Special Features

  • Lightweight machined aluminium construction.
  • Designed to allow access to all controls, ports, and accessories.
  • Durable construction for the air ambulance environment.
  • Quick release pin removal of Hamilton T1 from enclosure.
  • Indexable med-mount disk allows 360° rotation of enclosure for easy viewing of medical equipment.

Mounting Configurations Offered

HMC-HAM1-B2 BOTTOM MOUNT SAMPLE INSTALL
HMC-HAM1-BP6 BOTTOM MOUNT TO 6.06″ ADAPTER SAMPLE INSTALL
HMC-HAM1-C2 BACK MOUNT SAMPLE INSTALL
HMC-HAM1-C30 30° GCX POLE MOUNT SAMPLE INSTALL
HMC-HAM1-CB1 BACK & BOTTOM MOUNT SAMPLE INSTALL
HMC-HAM1-CGCX1 POLE MOUNT
HMC-HAM1-CP1 BACK MOUNT TO 10″ ADAPTER SAMPLE INSTALL
HMC-HAM1-CP2 BACK MOUNT TO 10″ NARROW ADAPTER SAMPLE INSTALL
HMC-HAM1-CP5 BACK MOUNT TO 4.96″ ADAPTER SAMPLE INSTALL
HMC-HAM1-T1 TOP MOUNT SAMPLE INSTALL
HMC-HAM1-TB1 TOP & BOTTOM MOUNT SAMPLE INSTALL
HMC-HAM1M-1 BACK MOUNT MILITARY VERSION
HMC-HAM2-1 UNIVERSAL NO DISK
HMC-HAM3-1 UNIVERSAL TOP MOUNT STYLE NO DISK
HMC-HAM3K-1 NO DISK 3K
HMC-HAM3K-C1 BACK MOUNT 3K SAMPLE INSTALL
HMC-HAM3K-T1 TOP MOUNT 3K HANDLE
HMC-HAM3K-TB1 TOP & BOTTOM MOUNT SAMPLE INSTALL
HMC-HAM3K-TC1 TOP & BACK MOUNT SAMPLE INSTALL
HMC-HAM4-1 UNIVERSAL LOW PROFILE NO DISK
HMC-HAM4-500-CB1 BACK & BOTTOM MOUNT 500 OFFSET SAMPLE INSTALL
HMC-HAM4-C1 LOW PROFILE BACK MOUNT SAMPLE INSTALL
HMC-HAM4-CB1 BOTTOM & BACK MOUNT SAMPLE INSTALL
HMC-HAM4-CP1-1
HMC-HAM5-1 UNIVERSAL MOUNT NO MOUNTING HOLES SAMPLE INSTALL
HMC-HAM6-1 UNIVERSAL LOW CG LOW PROFILE MOUNT
HMC-HAM6-500-C1 BACK MOUNT 500 OFFSET SAMPLE INSTALL
HMC-HAM6-C1 LOW CG LOW PROFILE BACK MOUNT SAMPLE INSTALL
HMC-HAM6-CB1 BOTTOM & BACK MOUNT SAMPLE INSTALL
HMC-HAM7-1 UNIVERSAL ANGLED NO DISK
HMC-HAM7-A1 ANGLED MOUNT SAMPLE INSTALL
HMC-HAM7-AB1 ANGLED & BOTTOM MOUNT SAMPLE INSTALL
HMC-HAM8-1 UNIVERSAL TOP BOTTOM BACK STYLE NO DISK
HMC-HAM8-TC1 TOP & BACK MOUNT
HMC-HAMNH1-1 UNIVERSAL NO HANDLE NO DISK
HMC-HAMNH1-B1 BOTTOM MOUNT SAMPLE INSTALL
HMC-HAMNH1-C1 NO HANDLE BACK MOUNT
HMC-HAMNH1-CB1 BOTTOM & BACK MOUNT
HMC-HAMNH1-TB1 TOP & BOTTOM MOUNT NO HANDLE SAMPLE INSTALL

Other mounting options available upon request.

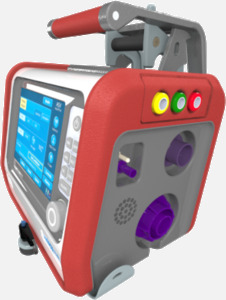

Hillaero HAMILTON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS ISO1 Hillaero HAMILTON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft ISO1

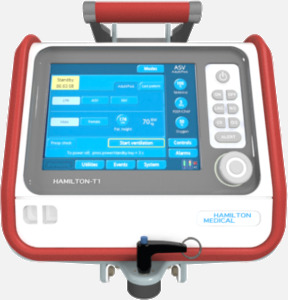

Hillaero HAMILTON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS FRONT Hillaero HAMILTON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft FRONT
Hillaero HAMILTON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS SIDE Hillaero HAMILTON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft SIDE

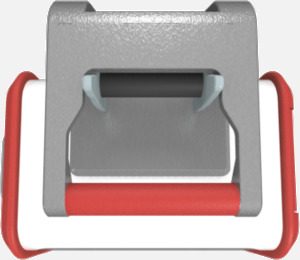

Hillaero HAMILTON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS TOP Hillaero HAMILTON FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft TOP
available configurations for HAMILTON

How To Use Our Product

The Hillaero Adapter plate can be used with most seat track configurations. The plunger secures the plate to the seat track and can be retracted by twisting the knob. In seconds the adapter plate can be removed from the seat track and installed in a new location. The Enclosure is secured to the adapter plate with the med-mount base and disk. The disk can rotate in the base allowing the enclosure to pivot on the adapter plate
