PHILIPS MP5

PHILIPS MP5

Secure your cabin with the Philips MP5 enclosure. The enclosure is designed to secure the Philips MP5 to the airframe while not compromising weight or maneuverability. The med-mount disk allows the enclosure to be installed in any certified med-mount base inside the cabin.

For taxi, take off, and landing

  • See the MP5 installed onto a KA-200 overhead track.

Special Features

  • Lightweight machined aluminium construction.
  • Designed to allow access to all controls, ports, and accessories.
  • Durable construction for the air ambulance environment.
  • Quick release pin removal of Philips MP5 from enclosure.
  • Indexable med-mount disk allows 360° rotation of enclosure for easy viewing of medical equipment.

Mounting Configurations Offered

HMC-MP5-1 UNIVERSAL NO DISK
HMC-MP5-B1 BOTTOM MOUNT SAMPLE INSTALL
HMC-MP5-TB1 TOP & BOTTOM MOUNT SAMPLE INSTALL

Other mounting options available upon request.

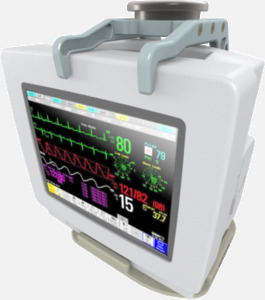

Hillaero PHILIPS MP5 FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS ISO1 Hillaero PHILIPS MP5 FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft ISO1

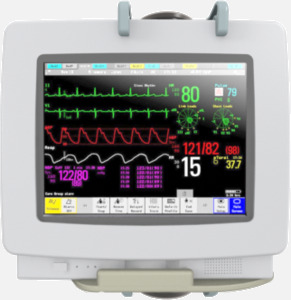

Hillaero PHILIPS MP5 FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS FRONT Hillaero PHILIPS MP5 FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft FRONT

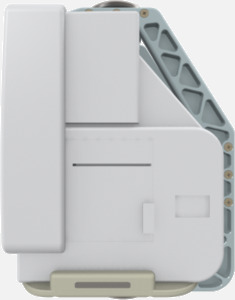

Hillaero PHILIPS MP5 FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS SIDE Hillaero PHILIPS MP5 FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft SIDE

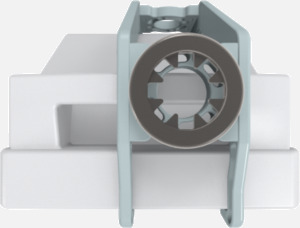

Hillaero PHILIPS MP5 FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS TOP Hillaero PHILIPS MP5 FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft TOP
available configurations for PHILIPS MP5

How To Use Our Product

The Hillaero Adapter plate can be used with most seat track configurations. The plunger secures the plate to the seat track and can be retracted by twisting the knob. In seconds the adapter plate can be removed from the seat track and installed in a new location. The Enclosure is secured to the adapter plate with the med-mount base and disk. The disk can rotate in the base allowing the enclosure to pivot on the adapter plate
