WELCH ALLYN PROPAQ

WELCH ALLYN PROPAQ

Secure your cabin with the Welch Allyn Propaq enclosure. The enclosure is designed to secure the Welch Allyn Propaq to the airframe while not compromising weight or maneuverability. The med-mount disk allows the enclosure to be installed in any certified med-mount base inside the cabin.

For taxi, take off, and landing

Special Features

  • Lightweight machined aluminium construction.
  • Designed to allow access to all controls, ports, and accessories.
  • Durable construction for the air ambulance environment.
  • Quick release pin removal of Welch Allyn Propaq from enclosure.
  • Indexable med-mount disk allows 360° rotation of enclosure for easy viewing of medical equipment.

Mounting Configurations Offered

HMC-WAPP2-1 UNIVERSAL NO DISK
HMC-WAPP2-C1 BACK MOUNT
HMC-WAPP2-TB1 TOP & BOTTOM MOUNT SAMPLE INSTALL

Other mounting options available upon request.

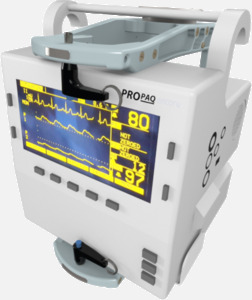

Hillaero WAPROPAQ FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS ISO1 Hillaero WAPROPAQ FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft ISO1
Hillaero WAPROPAQ FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS FRONT Hillaero WAPROPAQ FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft FRONT

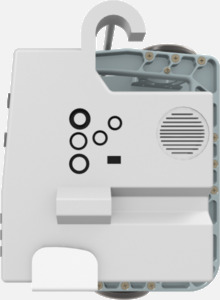

Hillaero WAPROPAQ FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS SIDE Hillaero WAPROPAQ FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft SIDE

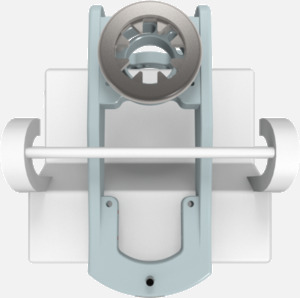

Hillaero WAPROPAQ FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS TOP Hillaero WAPROPAQ FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft TOP
available configurations for WAPROPAQ

How To Use Our Product

The Hillaero Adapter plate can be used with most seat track configurations. The plunger secures the plate to the seat track and can be retracted by twisting the knob. In seconds the adapter plate can be removed from the seat track and installed in a new location. The Enclosure is secured to the adapter plate with the med-mount base and disk. The disk can rotate in the base allowing the enclosure to pivot on the adapter plate
