ZOLL M

ZOLL M

Secure your cabin with the Zoll M enclosure. The enclosure is designed to secure the Zoll M to the airframe while not compromising weight or maneuverability. The med-mount disk allows the enclosure to be installed in any certified med-mount base inside the cabin.

For taxi, take off, and landing

Special Features

  • Lightweight machined aluminium construction.
  • Designed to allow access to all controls, ports, and accessories.
  • Durable construction for the air ambulance environment.
  • Quick release pin removal of Zoll M from enclosure.
  • Indexable med-mount disk allows 360° rotation of enclosure for easy viewing of medical equipment.

Mounting Configurations Offered

HMC-ZOLL M1-B1-ASSY

Other mounting options available upon request.

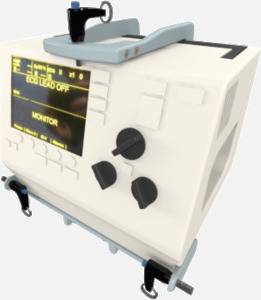

Hillaero ZOLL M FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS ISO1 Hillaero ZOLL M FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft ISO1

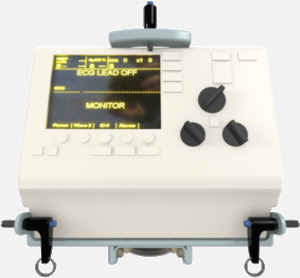

Hillaero ZOLL M FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS FRONT Hillaero ZOLL M FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft FRONT

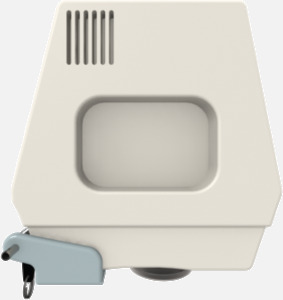

Hillaero ZOLL M FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS SIDE Hillaero ZOLL M FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft SIDE

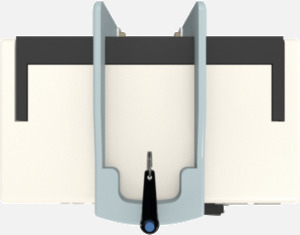

Hillaero ZOLL M FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS TOP Hillaero ZOLL M FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft TOP
available configurations for ZOLL M

How To Use Our Product

The Hillaero Adapter plate can be used with most seat track configurations. The plunger secures the plate to the seat track and can be retracted by twisting the knob. In seconds the adapter plate can be removed from the seat track and installed in a new location. The Enclosure is secured to the adapter plate with the med-mount base and disk. The disk can rotate in the base allowing the enclosure to pivot on the adapter plate
