PC12 HARDPOINT ADAPTER

PC12 HARDPOINT ADAPTER

Secure your cabin with the PC12 Hardpoint Adapter. The adapter is designed to secure any of our medical enclosures to the airframe while not compromising weight or maneuverability. The adapter utilizes existing net hard points to simplify the installation into the PC-12.

For taxi, take off, and landing

Special Features

  • Lightweight machined aluminium construction.
  • Front facing seat track can be used to hold up to 5 lbs.
  • Designed to allow access to all controls, ports, and accessories.
  • Durable construction for the air ambulance environment.
  • Simple installation into the PC-12 aircraft using existing net hardpoint attach points.
  • Comes with three Med-Mount bases that accept any of our medical equipment enclosures.

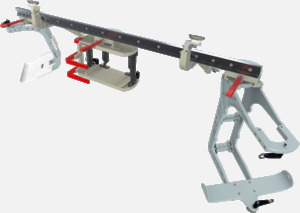

Hillaero PC12 HARDPOINT MOUNT ADAPTER FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS ISO1 Hillaero PC12 HARDPOINT MOUNT ADAPTER FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft ISO1

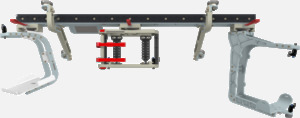

Hillaero PC12 HARDPOINT MOUNT ADAPTER FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS FRONT Hillaero PC12 HARDPOINT MOUNT ADAPTER FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft FRONT

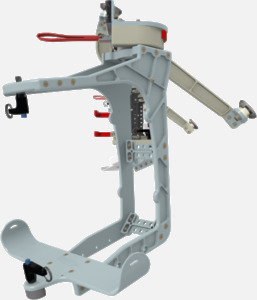

Hillaero PC12 HARDPOINT MOUNT ADAPTER FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS SIDE Hillaero PC12 HARDPOINT MOUNT ADAPTER FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft SIDE
Hillaero PC12 HARDPOINT MOUNT ADAPTER FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft WITH UNITS TOP Hillaero PC12 HARDPOINT MOUNT ADAPTER FAA certified mountable bracket for Air Ambulance Airmed Helicopter or Fixed Wing Aircraft TOP
available configurations for PC12 HARDPOINT MOUNT ADAPTER

How To Use Our Product

The Hillaero Adapter plate can be used with most seat track configurations. The plunger secures the plate to the seat track and can be retracted by twisting the knob. In seconds the adapter plate can be removed from the seat track and installed in a new location. The Enclosure is secured to the adapter plate with the med-mount base and disk. The disk can rotate in the base allowing the enclosure to pivot on the adapter plate
